15W Intel Celeron Quad Core Rugged Mini Pc Quiet Noise RS232 RS422
RS485
FEATURES
1. The aluminum alloy structure, hard anodic oxidation treatment of
sandblasting, resistance to scratch
2. Intel Bay trail j1900 CPU:2.0GHz Fanless configuration
3. Two gigabit front-end ports, two serial RS232/422/485, 8 kv static
and 600 w TVS surge protection
4. The onboard TPM2.0 module provides maximum security hardware
5. Wide voltage DC 9 v ~ 36 v, over-current, over-voltage and reverse
connect protection
Application
Factory automation
Self service equipment
Paying kiosk
cnc plasma machine
car testing mechine
Multi-Product Dispensing Machine
Specification
| EFIC-5000JA |
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB |
| Chipsets | Intel Bay Trail SOC |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB |
| Harddisk | 1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional |
| Graphics | Intel HD Graphics |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| TPM | TPM 2.0 |
| Operation System | Windows7 / 8 / 10, Linux, Ubuntu, Debian |
| I / O | Display | 1 x H-DMI |
| LAN | 2 x LAN |
| USB | 3 x USB2.0 / 1 x USB3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | WiFi + Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Gray / Silver / Black ( optional ) |
| Fixed size | 272 x 90 mm / 272 x 60 mm |
| Product Dimension | 258 x 158 x 33 mm |
| Packing Size | 360 x 180 x 320 mm |
| Gross Weight | 4.0 KG |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -20~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC IN 9V~36V |
| Power Consumption | ≦15W |

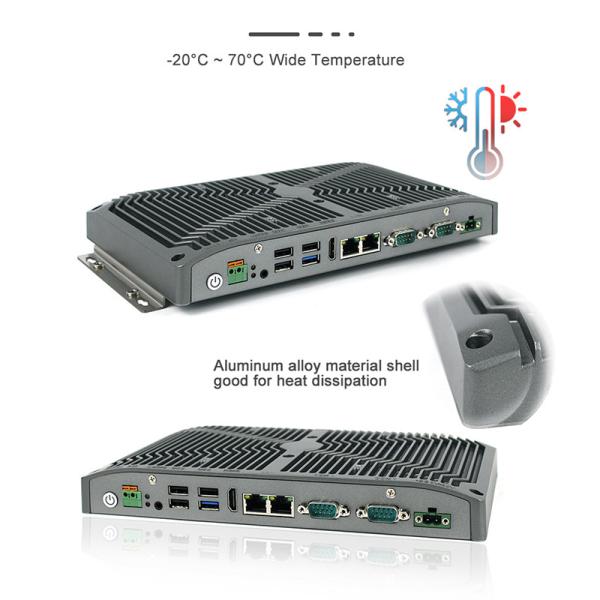

Highly reliable, fanless, noise-free, energy efficient, rugged mini
PC designed for a large variety of demanding applications. Designed
without cooling fans the rugged extruded aluminum chassis acts as a
heat sink to dissipate internal heat and provide quiet noise free
operation. A breakthrough in micro computing thanks to the rugged
design, compact dimensions, and high functionality.
Shinho Fanless Rugged Mini PCs series are designed for unique,
industrial applications that require compact size, durability, high
reliability, and universal performance.
